Ford F550 tune — custom calibration for a working heavy-duty truck
American heavy-duty pickups are a growing part of what comes through The Automotive Clinic, and this Ford F550 is a good example. It’s a truck that spends its life loaded or towing, and the customer wanted it to pull harder on hills and on take-off with weight on the back, without giving anything away on reliability. The calibration was developed from the truck’s own ECU read (software 125596) in WinOLS using our in-house definitions for the platform.
Why the F550 is tuned differently to a ute

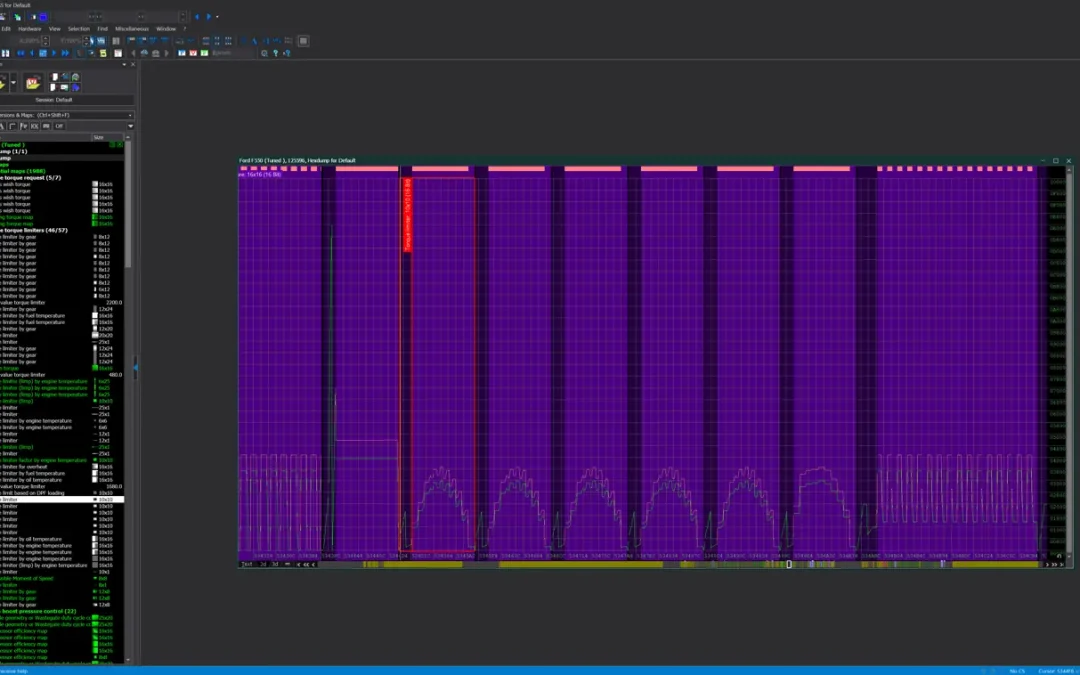

A Super Duty calibration is built around the driveline, not just the engine. The ECU carries a large set of torque limiters by gear — more than forty on this file — plus limiters by engine, fuel and oil temperature, a torque limit based on DPF loading, and separate limp strategies. Lift the base torque map and leave those alone and the truck simply runs into the next limiter; lift them all blindly and you put the transmission and driveline outside what Ford designed them for. Getting a working truck right means working through that structure deliberately.
What the calibration targets
- Stronger torque in the working rev range so the truck pulls loads without being driven at full throttle
- Torque limiters by gear lifted progressively — more in the higher gears where the driveline can take it, conservatively in first and second
- Boost and VGT control retuned to suit the new fuelling, keeping the turbo inside its compressor efficiency range
- Smoke and airflow limiters adjusted so the gains come as pull, not black smoke
- Throttle response cleaned up for take-off and low-speed manoeuvring with a trailer
Fuel economy on a working truck usually improves as a side-effect: with more torque available lower in the rev range, the driver isn’t holding the engine at high rpm to keep momentum.
Delivery
The file was built from the customer’s read and returned for flashing back with their tool. As with all our commercial work the solution is supported — if anything shows up in the logs afterwards, we look at it and revise the file.
Trucks and heavy-duty diesels we tune
- Ford F250 / F350 / F450 / F550 Super Duty
- Ram 2500 / 3500 Cummins and Chevrolet Silverado HD Duramax
- Hino, Isuzu N/F Series and Fuso Canter / Fighter
- Bosch EDC7 / EDC17CV / MD1, Denso, Transtron and Cummins CM-series platforms on trucks, tractors and plant
